What is a UF Membrane Filter and How Does It Work?

What is an UF Membrane Filter?

An ultrafiltration (UF) membrane filter is a type of pressure-driven membrane filtration process that separates particles and dissolved substances based on their size and molecular weight. UF membranes are typically made of synthetic polymers, such as polyethersulfone (PES), polyvinylidene fluoride (PVDF), or polysulfone (PS), and have pore sizes ranging from 0.01 to 0.1 micrometers (µm).

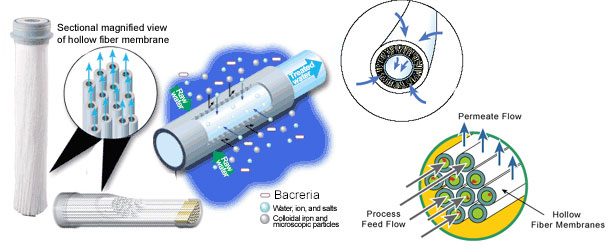

How does an UF Membrane Filter Work?

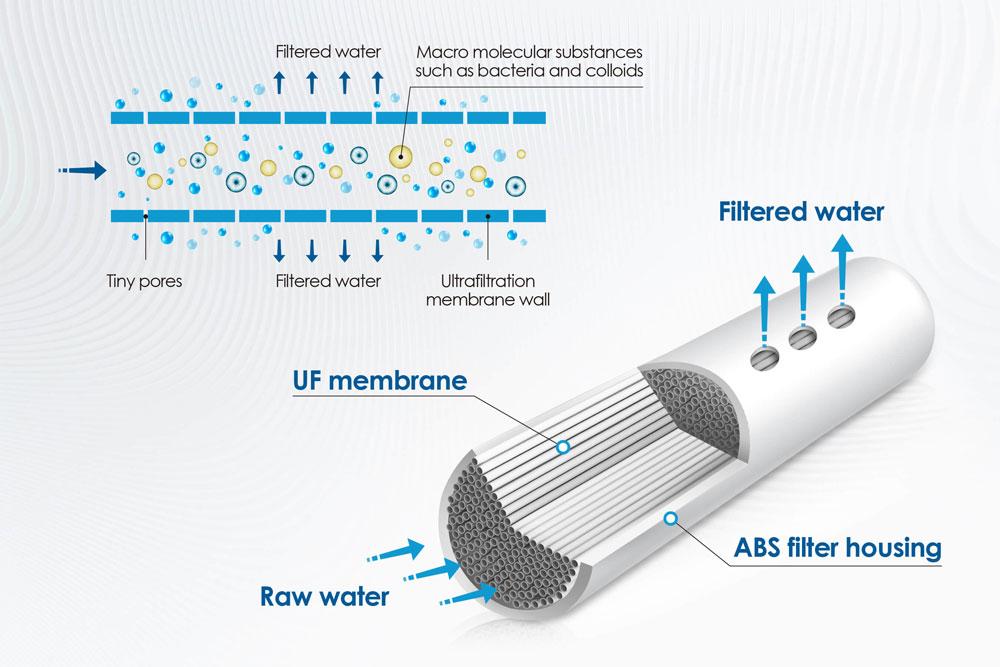

The UF membrane filter operates by applying a pressure difference across the membrane, forcing the water to flow through the pores. As the water passes through the membrane, larger particles and molecules are retained on the feed side, while smaller particles and solvents pass through the pores and are collected on the permeate side.

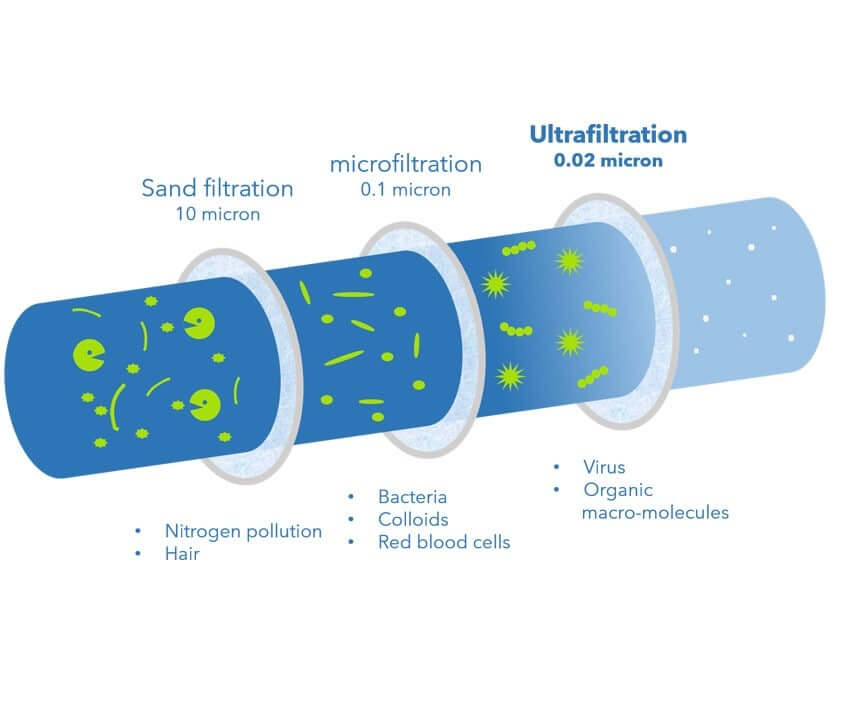

The separation process in UF membrane filtration is mainly based on size exclusion, where particles larger than the pore size of the membrane are rejected, while smaller particles pass through the membrane. Additionally, some degree of electrostatic repulsion may also contribute to the separation process, as charged particles may be attracted or repelled by the charged membrane surface.

Applications of UF Membrane Filters

UF membrane filters have a wide range of applications in various industries, including water and wastewater treatment, food and beverage processing, pharmaceuticals, and biotechnology. Some of the primary applications include:

1. Drinking water treatment: UF membranes can be used to remove bacteria, viruses, protozoa, and suspended solids from raw water sources, providing a high-quality drinking water that meets the World Health Organization (WHO) guidelines for drinking water quality.

2. Wastewater treatment: UF membranes can be employed in wastewater treatment plants to remove suspended solids, organic matter, and pathogens, leading to a significant reduction in the environmental impact of wastewater discharge.

3. Food and beverage processing: UF membranes are used in the dairy industry to concentrate milk proteins, remove lactose and other small molecules, and produce high-quality whey protein products. In the beverage industry, UF membranes are used for clarification, sterilization, and concentration of fruit juices, wine, and beer.

4. Pharmaceuticals and biotechnology: UF membranes are widely used in the production of biopharmaceuticals, such as monoclonal antibodies, recombinant proteins, and vaccines, for the separation and purification of biomolecules, cells, and viruses.

Benefits of UF Membrane Filters

UF membrane filters offer several advantages over conventional water treatment methods, including:

1. High efficiency and effectiveness: UF membranes can effectively remove a wide range of contaminants, including bacteria, viruses, protozoa, and suspended solids, providing a high-quality treated water.

2. Low energy consumption: UF membrane filtration is a low-pressure process, requiring less energy compared to other membrane filtration processes, such as reverse osmosis (RO).

3. Compact design and modularity: UF membrane systems are typically compact and can be easily scaled up or down to meet the specific needs of a given application.

4. Chemical-free operation: UF membrane filtration does not require the use of chemicals for the removal of contaminants, reducing the environmental impact and operational costs.

5. Long service life: UF membranes have a long service life, typically ranging from 5 to 10 years, depending on the operating conditions and maintenance practices.
